Binder-free wadding
Thermal bonding production line
Binder-free wadding
Physical thermal bonding replaces chemical adhesives to realize an eco-friendly, high-efficiency and low-cost production mode. Finished product performance comprehensively surpasses traditional filling materials, widely applied in home textiles, apparel, industrial filtration and other fields, serving as one of the mainstream equipment in nonwoven industry.
Product Features
Main Specifications
Working width: 2 – 5.5m
Basis weight: 60 – 3000g/㎡
Production speed: 10-55m/min
Production capacity: 500-1500kg/hr
Raw materials: polyester staple fiber, low melting point fiber
Features
Fully automatic precise batching and mixing
Fine carding for excellent finished product resilience
Multi-layer cross-laying with arbitrarily adjustable thickness
Closed-loop hot air oven for adhesive-free hot melt setting
Frequency conversion linkage automatic control with strong stability
High efficiency, low consumption, clean and dust-free
Applications
Home textile filling
HVAC filtration
Thermal insulation
Automotive interior

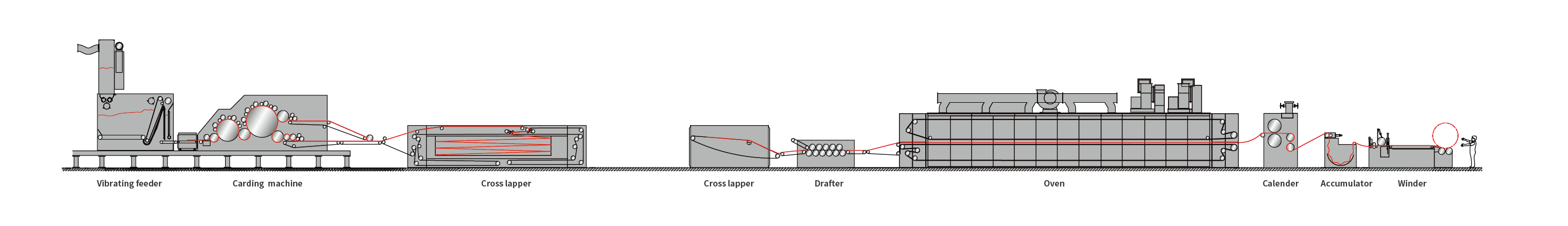

Process Flow
Key Equipment
-
Fiber Opening & Blending SystemComplete raw material unpacking, loosening, blending and quantitative feeding to break bundled fibers into loose fiber strands.
-
Carding MachineDouble cylinder and double doffer structure with multiple carding units to card fibers into uniform thin webs. High-precision rollers and bottom plate manufacture guarantee web uniformity.
-
Crosslapper MachineThe crosslapper multi-layer overlays thin webs to control basis weight (60 – 2000g/㎡) and thickness (10 – 200mm), improving uniformity and tensile strength.
-
Hot Air entanglement (Core)High-temperature drying room (150 – 200℃, heated by electricity/gas/heat transfer oil), low-melting point fibers melted to form bonding points at fiber intersections for 3D network shaping.
